Achieve flexibility and simplicity when setting up your experiments with dozens or hundreds of sensors. Less wires and headaches, with a simple to use interface.

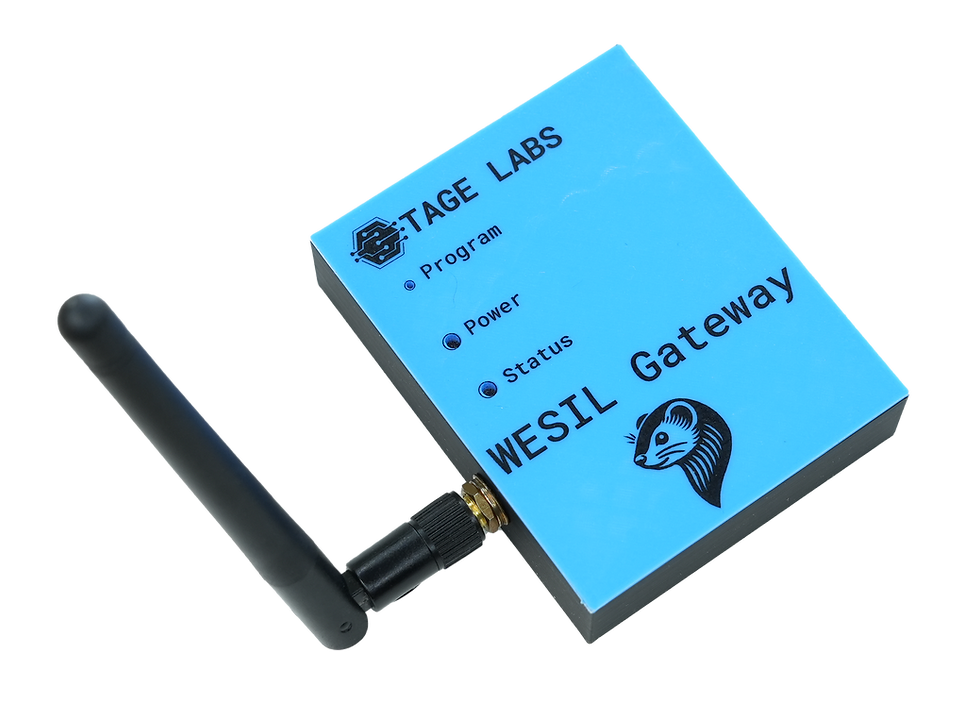

The WESIL Gateway connects to a Windows PC via USB cable and acts as the controlling interface to the associated clients. Data from the clients are collected via 915MHz wireless signal.

The included PC software allows data collection to be configured and manage control of the clients and sensors. The capture data is stored in a CSV file for export to analytical systems.

Multiple clients can be connected to one gateway, each individually identified. Data retrieval speed to determined by the  number of clients.

The WESIL PC application is included with the gateway. No aditional software licenses required.

Each client has a set of 12 RJ9 ports for the sensors. Any TTL sensor can be attached to the client using standard 4 wire phone cable and RJ9 connectors.

In addition to the TTL input ports, there are 2 TTL output ports for controlling TTL devices such as lights, temperature controllers etc. There are two 640nm LED's to inidcate status. These can be easily covered for light sensitive experiments.

Each client is powered with a USB-C cable and 5v/2A wall charger.
